5630

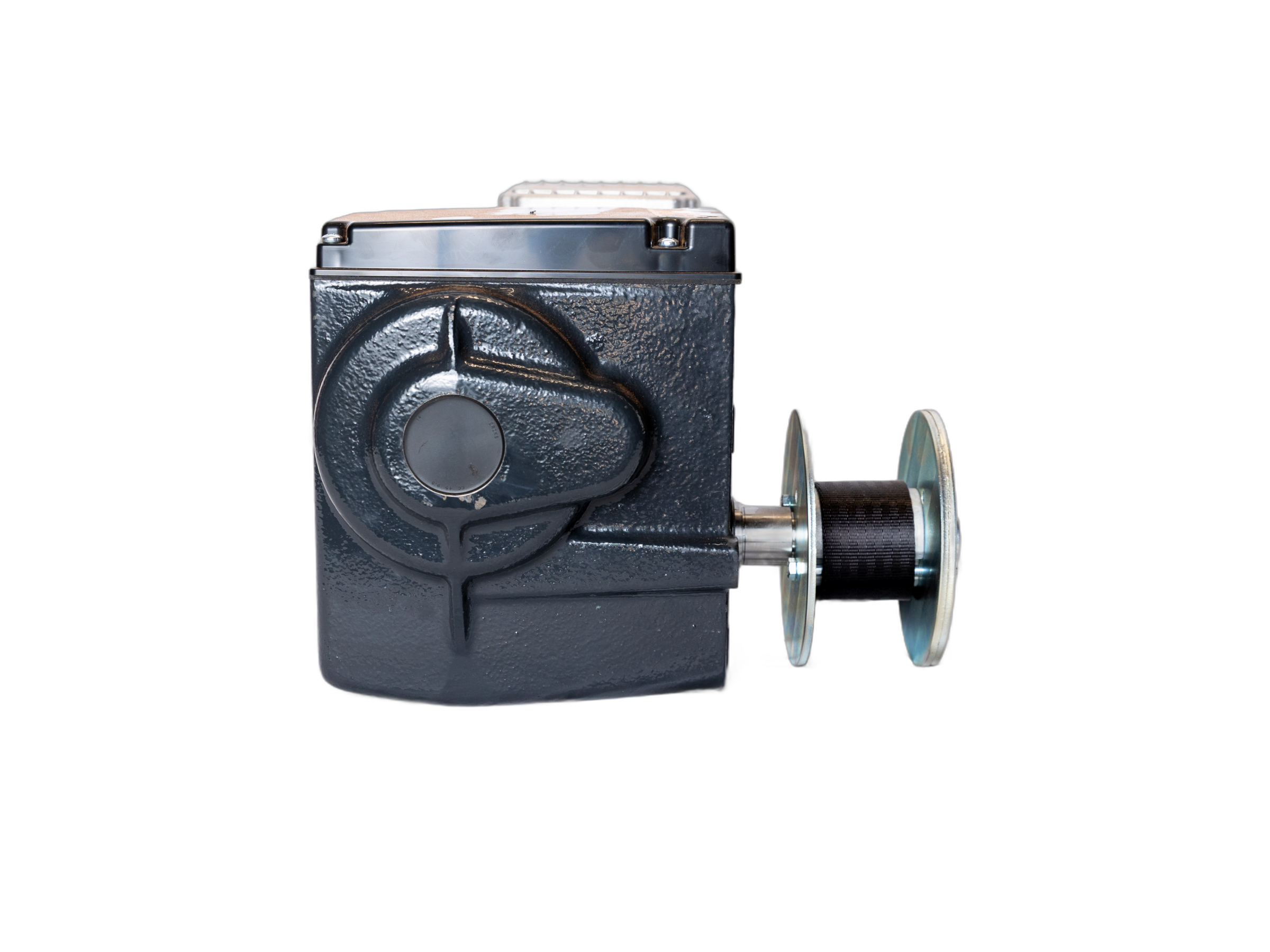

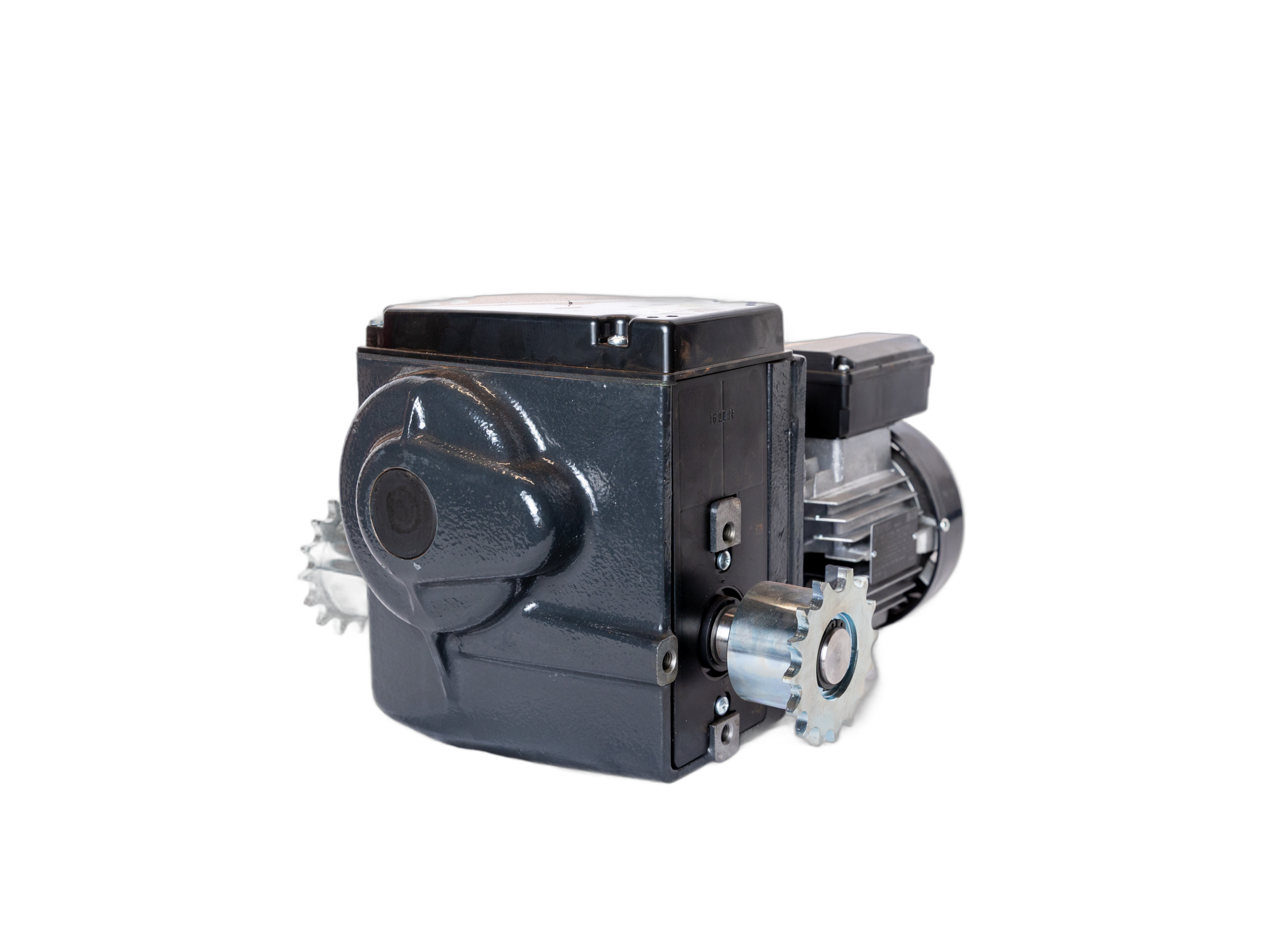

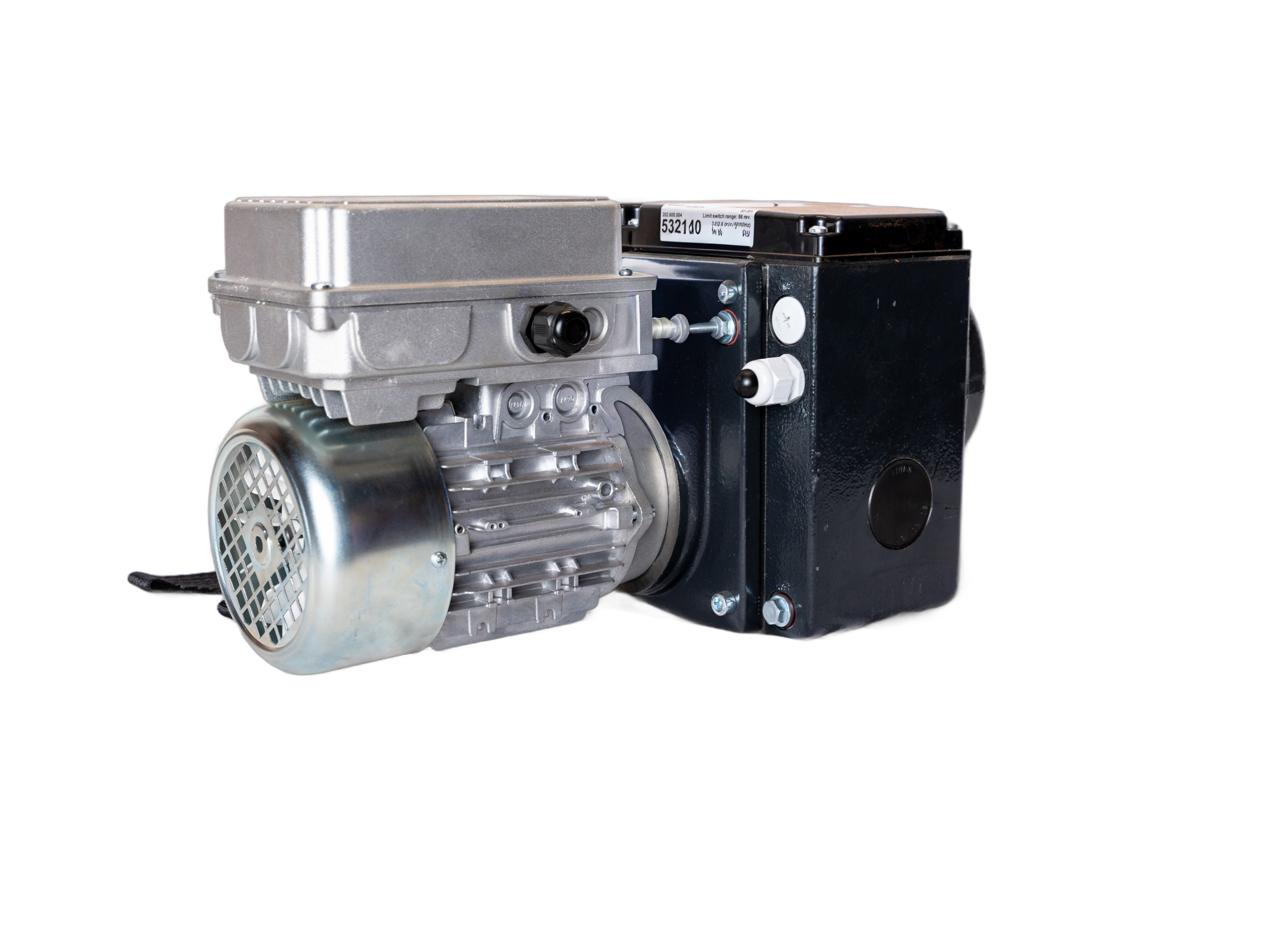

The Ridder RW400 family (including RW401L configurations) is a heavy-duty motor-gearbox drive for long tunnel doors, tall curtains, and male feeder pan winching.

• Typical tunnel/curtain rating: 2,500 lbs
• Male feeder pan application: up to 600′ house at 3,000 lbs
• Cable or up to 2 straps on listed applications
• Options span ~1.0–6.0 RPM and 120 V / 230 V / 480 V 3-phase

Pair with Ridder control box 5670 (RMC400 for RW240 & RW400) when a local control is required.

Applications

Select voltage and RPM options to match the house layout.

• Tunnel doors — 4′ or 5′ tall: Up to 250″ opening, single side; 2,500 lbs; cable or up to 2 straps
• Tunnel doors — 6′ tall: Up to 250″ opening, single side; 2,500 lbs; cable or up to 2 straps
• Curtain — 4′ max height: Up to 700′ long × 4′ high; 2,500 lbs
• Curtain — 7′ max height: Up to 700′ long × 7′ high; 2,500 lbs
• Sprocket / pipe-driven tunnel-vent: Pipe or rack-driven opening up to 250′
• Male feeder pans: Up to 600′ house; 3,000 lbs; cable or up to 2 straps
